Full Toilet View. Trip Lever: Metal bar connected to the toilet handle. Tank Cover: Lid of the toilet tank. Chain: Connects the Trip Level to the Flapper Valve. Float Ball: Moves up and down along the toilet Fill Valve. Refill Tube: Squirts water into the bowl after the flush. Flapper Valve: This goes up when the toilet handle is pushed down and stops water from constantly flowing into the ... PlumbingSupply.com ® offers thousands of toilet repair parts, and as many of our customers have found, we have the largest selection of replacement flappers, fill valves, flush valves, toilet seats, supply kits, flanges, gaskets and rings, tools, tank lids and more - all in one convenient location. Our extensive selection and great prices will ...

Genuine American Standard replacement parts by tank number and toilet model. Find new flappers, ballcocks and flush valves for all American Standard old and new style toilets. Providing top-quality industrial kitchen taps & bathroom faucets & an extensive stock of repair & replacement parts by T&S Brass, Fisher, Grohe & KWC.

Toilet tank parts diagram

In fact, if you do your own mixing and matching, the toilet may not flush at all! Gravity Fed and Pressure Assisted tanks and bowls cannot be mixed. A 3.5 gallon per flush tank and 1.6 gallon per flush bowl (and vice versa) will not function together, as the trapway designs are completely different based upon the gallons per flush of the entire ... We also have toilet flush valve repair parts if a broken flush valve — responsible for forming the seal that holds water in the tank — is the malfunction. Or it simply could be a faulty handle. You can find the toilet handles and levers you need at Lowe's to replace old or damaged ones to regain a proper flush. Leaking Issues. Toilet Tank Parts: Plumbing Diagram, Pictures, Repairs. A toilet has 2 main parts, a tank and a bowl. The tank is usually mounted on top of the bowl so that water can flow from the tank to the bowl using gravity during flushing. The main function of a toilet tank is to supply the bowl with enough water to flush the toilet.

Toilet tank parts diagram. For these aims apply the toilet tank parts diagram. As for our own toilet parts, we will search them below. And the handle allows flushing the toilet quickly and securely. So it works as a simple lever: experts will confirm it sure. The trip lever. This part of the device is not large but a solid metal bar setting into the tank. The property of ... American Standard Toilet Part & Seat Guide Please Click On Your Model Number Found In Your Tank . There are hundreds of parts to fit an American Standard toilets, because they have been around for many years and have made so many types and styles of American Standard toilets. Toilet parts can be purchased individually as well. Knowing the parts of a toilet and reviewing a toilet parts diagram can help you figure out what you'll need. Even when you are familiar with the parts of a toilet tank and the parts of a toilet bowl, you may not be able to fix every problem. Kohler Co.

Most problems will occur with the flapper or the float. If you have an old toilet, the flapper will eventually need to be changed. Depending on the type of float, it can get stuck and might need to be adjusted occasionally. If needed, all of the parts and valves inside the tank can be replaced and the parts can be purchased as part of a kit. The model number of your Mansfield tank is how you get the right parts. Below are images of where you might find the model number. Once you find your model number select it in the model number listing below to see the parts to fit your toilet. Mansfield Tank Model Number Listing 10 124 175 395 3125 11 125 177 700 3147 Just find the model toilet you have and voilà! Replacing your fill valve, flush valve or flapper and repairing your Eljer toilet will save you money, and replacement parts for your toilet are just a click away. click any toilet below to find parts schematics for that model. Belmont. 4061. Nov 04, 2021 · The parts to the toilet tank can be separated into two main categories: the ones involved with the refill mechanism and the ones involved with the flush mechanism. The former category of toilet tank parts consists of a refill tube, a toilet float, and the fill valve. The latter category, on the other hand, includes a flush valve, a toilet ...

Check if Your Toilet Is a One-Piece or Two-Piece Toilet Look for Model and Parts Numbers If you have a toilet manufactured after 1990, various service part numbers are listed on the underside of the lid. The toilet tank number is imprinted on the inside back of the tank. Find Your Toilet in the Matrix coupled toilet combination-siphon jet action bowl-tank with cover-2 bolt caps with retainer clips (4 bolt caps and 2 floor screws for 10" toilet) illustrated combination water saving elongated Cadet 2019.016 (less seat) vitreous china free standing close coupled toilet combination-elongated siphon jet action bowl-tank with SP 6_US 12 1930 Series US 2pc Toilet # 015101 & 087223 - 1.28 gpf (Single Flush) Description Model-No. USD Version I Tank Parts - Grohe Single Flush (#0872230001): Repair procedures for reproduction high-tank toilets are pretty straightforward and are basically the same as repairs for low tanks. Common complaints in these toilets include leaks where the flush tube meets the tank, constantly running water, and having to hold the chain until the toilet is done flushing.

Plumber Cost To Install Toilet Sinks Near Me The Plumber Guys

Anatomy of A Toilet. Scroll over the name of a part to see location in your toilet. Fill Valves Flappers Flush Valves Repair Kits Tank Levers Water Supply Connectors Wax & Wax-free Toilet Seals Repair Parts Automatic Toilet Cleaners

Toilet Parts Repair

The overflow tube is a part of your toilet tank that streams water supplies directly into the closet bowl. 6. Float Ball. Of the many parts of the toilet, the float ball is one that has a round shape. This component will move up and down in the fill valve. 7. Trip Lever. The trip lever is one of many parts of the toilet, which has a bar shape ...

Toilet Tank Parts Plumbing Diagram Pictures Repairs Toilet Haven

Toilet Flapper & Replacement Parts. Korky designs many types of replacement toilet parts to fit Glacier Bay® toilets. Flapper & Seal Replacements. Fill Valve Replacements. Complete Toilet Repair Kits. Flush Valve Replacements. Wax Free Gaskets. Toilet Flush Handles. Tank to Bowl Gaskets.

How To Replace Toilet Handle A Step By Step Guide 1 Tom Plumber

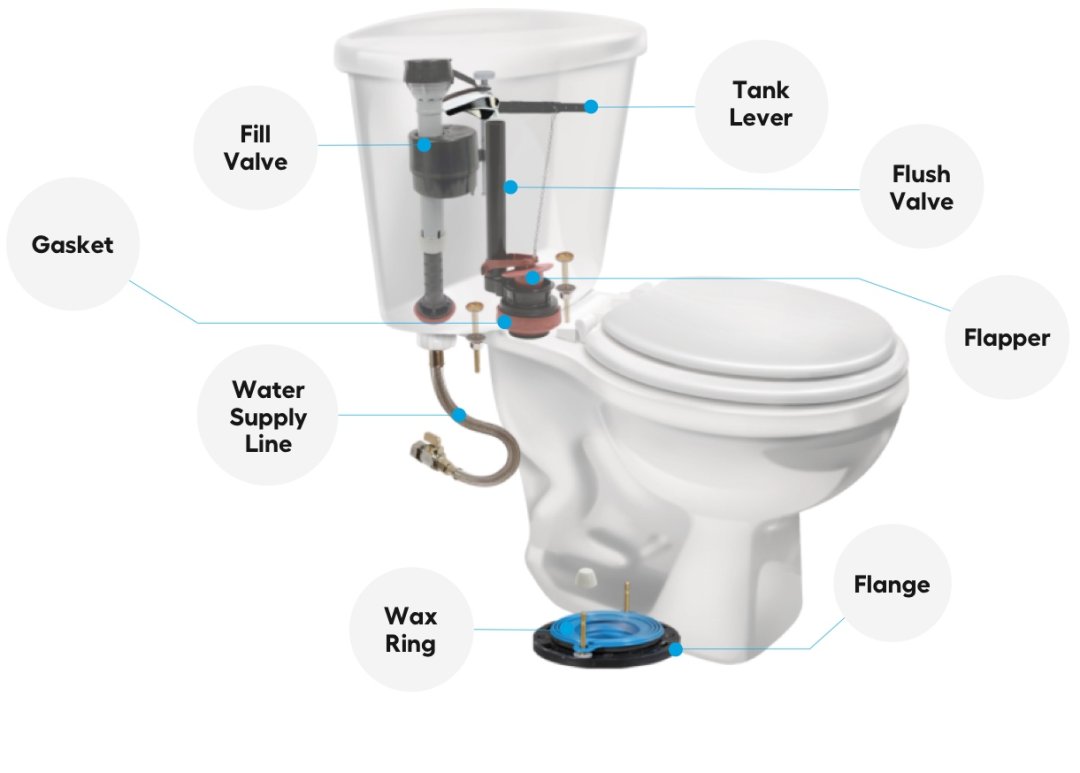

So we can’t expect you to be able to fix your toilet without knowing the difference between a fill valve and a flush valve. Here is a diagram of a toilet tank with all of its major components and Fluidmaster parts identified for you. NOTE: Some tanks may have unique fill and flushing systems installed.
