In this episode of Spec. Sense, Vance explains how a submersible sump pump works to remove water from under your home's foundation. Sump pumps are essential ... How does a sump pump work? Sump pumps move water from your basement out of your home. A sump is a naturally constructed pit, usually a hole carved below the main surface of your basement floor. This pit, known as a basin, holds the sump pump. The pump is equipped with valves that sense escalating water levels or pressure.

How it Works. When you have an area that has been overcome by flood waters, the pipe that leads downward from the motor on the pedestal goes to the bottom of what is called the sump pump pit. A float is attached to a metal rod to a switch on the pump. When the sump pump is in action, the water is sucked into the pipe that is in the sump pit and ...

How does a sump pump work diagram

How Does a Diaphragm Pump Work? Diaphragm Pumps are used extensively in many industries and can handle a very wide variety of liquids. Diaphragm Pumps are in the category of "positive displacement" pumps because their flowrates do not vary much with the discharge "head" (or pressure) the pump is working against (for a given pump speed). A backup option to your primary electric sump pump is a water powered sump pump. Water powered pumps contain few moving parts and do not need electricity or a battery backup. As long as you have city water (not well water) you'll have a working sump pump and a dry basement—even if the power fails. How a Water Powered Sump Pump Works How a basement sump pump works and why. I even explain where the water goes and how it enters your basement.http://www.askmediy.com

How does a sump pump work diagram. work near a lead-acid battery. ... from exiting the pit and damage the pump if the line freezes. (see Diagram A) The system should be placed on a flat surface free from dirt and debris. If the bottom of the sump pit is not clean, remove as much of the debris as possible. You should place a pump stand or bricks on the floor of the sump pit to raise the pump above the debris. If you are ... The sump pump discharge pipe takes water from the pit and deposits it outside. It must be carefully placed to ensure that the water does not rush back to the foundation. These pipes also need a check valve to keep the water flowing out, not back in. Inside the sump pump is a motor with a fan-like device that pushes water out through the pipe. How Do Sump Pumps Work? Most of the sump pumps sit just above or just under your basement floor. Its depending on the weather or you can not invent in the submersible sump pumps. As the water collects, it drains into a sump pump, which then pumps water out of your home. In the yesteryear, the most sump pumps drained into a local sewer. Thanks to our friends at London Drainage Services for your hard work putting this Sump Pump Diagram together. ... As always thanks for reading. I sincerely hope that if you ever ask yourself “how does a sump pump work?” you know where to look. Let us know in the comment section below if the Sump Pump diagram was of any use to you. Sean Kavanaugh . Last update on 2021-09-18 at 01:41 ...

How Does a Typical Sump Pump Work? First, we'll discuss the location of the pump. Then, we'll talk about the basic function and the different components it relies on for its operation. It's kept in the furthest end of the basement/ crawlspace of a house. We'll describe a submersible pump since it's the most popular of all pumps. A sump pump is a small pump sunk into the ground of the basement or lowest level of the house. It is used to pump water up and out of the basement before it can cause damage to the home. The water is frequently directed to an area outside the home where it can be safely carried away, such as a storm drain, dry well or sewer system. Single-phase submersible pump control box wiring diagram - 3 wire submersible pump wiring diagram. In the submersible pump control box, we use a capacitor, a resit-able thermal overload, and a DPST switch (double pole single throw). The wiring connection of the submersible pump control box is very simple. Here is the complete guide step by step. Sump pump switches are the main link for controlling the sump pump. The main cause for sump pumps to not operate properly is the switch. Without the switch, the pump will not turn on. There are basically three types of switches; vertical, diaphragm, and tethered. There is an electronic switch that we will get into later.

A submersible pump can be either two or three wire, regardless of the voltage coming from the panel, so start at your pump and follow the conduit back. If the conduit runs into a control box before continuing to the water pressure switch, chances are you have a three wire pump. If it runs straight to the pressure switch, it is a two wire. On the water-powered sump pump itself, there are two main components: (1) the pump jet, and (2) the valve. Additionally, the pump has three connection points for the water feed, suction pipe, and discharge pipe. When the float switch is activated, the valve automatically opens, allowing your municipal water to flow through the pump jet, pulling ... A sewage ejector pump, also called a pump-up ejector system, is used when a bathroom, laundry room or any other type of plumbing fixture is located below the level of the main sewer or septic line flowing from the house.The flow of drain-wastewater depends on gravity, so any plumbing systems in which fixtures are located below the level of the main sewer line all require a pump or some means ... A clogged pump will eventually ruin the motor and fail at the worst possible time. If your pump has a pump cord that plugs into the float cord plug, unplug both, and then plug only the pump cord into the outlet. You should hear the motor running. If you do, connect the plugs the way they were and plug the pump back in. Some pumps have only one ...

How Does a Sewage Pump Work? A sewage pump transfers sewage solids and liquids from one place to another. When it comes to residential, sewage composes of soft solids that have a diameter of up to 2 inches. The sewage is propelled from the sewage basin to a septic tank or a sewer system. The sewage pump is set up at the lowest point of your ...

A sump pump is an effective device that alleviates basement flooding by pushing out all the water after collecting it in a sump basin. Basement flooding mostly occurs in the middle of a thunderstorm, which means that there might be no electricity to power the sump pump.A battery backup sump pump will come in handy during such situations.

How Does a Sump Pump Work? Most sump pumps are hardwired into a home's electricity supply, but some operate using the municipal water supply. Water-driven sump pumps work during power outages, making them a good choice if you live in an area with an annual storm season. On the other hand, they can cost quite a bit to run if your city's ...

For comparison, at the same 10 foot lift, typical 1/4 HP electric backup sump pump will pump around 1,000 GPH, while a higher-end 1/3 HP electric pumps can pump up to 1,800 GPH. Our articles, Water-Powered vs Battery Backup Sump Pumps and also Pros and Cons of Water-Powered Sump Pumps , both go into more detail covering some of the benefits of ...

How does a sump pump work diagram. A. All newer sump pumps have thermal protection built in to protect the motor. If the motor becomes too hot, a thermal relay will trip and shut off power to the motor. Unplug the pump and let the motor cool. The thermal relay should reset in 15 to 30 minutes.

Website: http://www.thesumppumpcompany.com/index.phpFacebook: https://www.facebook.com/TheSumpPumpCompany?ref=hlTwitter: https://twitter.com/SumpPumpCompanyI...

Click to see full answer. In this manner, how do sump pumps work diagram? The pipe usually has a one-way valve called a check valve at the pump end to keep the water from flowing back into the pit. Most sump pumps turn on automatically through a float activator arm or a pressure sensor. A buoyant ball floats on top of the water, manually moving the arm as the water level rises.

How Does the Exterior Sump Pump Work? After we install the outdoor sump pump in the lowest spot in the yard we then connect the pump to a pipe buried below ground. After a rain, the exterior sump pump then sends the water somewhere outside the area that has the high water issues. More often than not, the excess water is pumped to the curb ...

How a sump pump works? What does a sump pump do & used for? Here a detailed guide for beginners & also read 6 common sump pump problems & what to do about ...

Fill your sump to 50% full with the return pump running. Disconnect the power to the pump and let the water back drain into the sump. Measure how much the water level in your sump rises. This now shows you how much gap you need to leave at the top. eg: Back Drain amount rose sump water level by 4″.

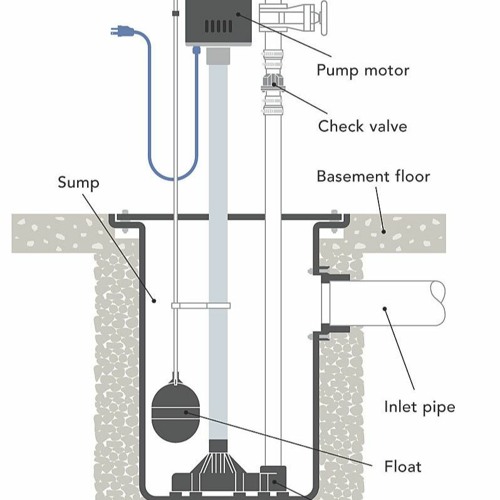

This shows how a sump pump works, with parts diagram and information on submersible and pedestal sump pumps. A sump pump system consists of four major parts: a ground water collection system, a sump tank, a pump, and an outlet drain. Here’s how they work: Components of a Sump Pump System ©Don Vandervort, HomeTips. Ground water is collected by drain rock and drain tile buried along the ...

A sump pump is a device that reduces the risk of water damage to the underground part of a home. When there's excess water in the ground around your ...

A sump pump is a small pump installed in the lowest part of a basement or crawlspace. Its job is to help keep the area under the building dry and to prevent it from flood­ing. Usually, sump pumps are installed in specially constructed sump pits. Water flows into the sump pit through drains or by natural water migration through the soil. The sump pump's job is to pump the water out of the pit ...

How a basement sump pump works and why. I even explain where the water goes and how it enters your basement.http://www.askmediy.com

A backup option to your primary electric sump pump is a water powered sump pump. Water powered pumps contain few moving parts and do not need electricity or a battery backup. As long as you have city water (not well water) you'll have a working sump pump and a dry basement—even if the power fails. How a Water Powered Sump Pump Works
