The remaining problems (4.5-25 through 4.5-40) involve specialized topics, such as optimization, beams with hinges, and moving loads. Draw the shear-force and bending-moment diagrams for a cantilever beam AB carrying a uniform load of intensity q over one-half of its length (see figure).

Shear force and bending moment diagram for cantilever beam

6:02This video shows the shear force and bending moment diagram for a cantilever beam. Cantilever is the type ...29 Dec 2018 · Uploaded by Civil Engineering Shear Force and Bending Moment diagram for cantilever beam. It is a transverse force, one part of the beam exerts on the other part at any cross section. It is equal to the algebraic sum of all the transverse forces (including the reaction) either to the left or to the right of the cross-section. 3.2 - Shear Force & Bending Moment Diagrams What if we sectioned the beam and exposed internal forces and moments. This exposes the internal Normal Force Shear Force Bending Moment ! What if we performed many section at ifferent values Of x, we will be able to plot the internal forces and bending moments, N(x), V(x), M(x) as a function Of position!

Shear force and bending moment diagram for cantilever beam. QUIZ 5: Shear and Bending Moment Diagram (10 MARKSI Figure below shows a cantilever beam with two concentrated loads. Draw the shear and bending moment diagram and find the maximum value of the shear force and bending moment. Determine the maximum normal stress in the beam. [10 Marks] P= 30 KN P= 20 KN 4m 1m II B С I 1 m 6 m A 1m Figure: The ... 10:49SHEAR FORCE and BENDING MOMENT DIAGRAM ( Cantilever Beam UDL ) - part 1 ... Thank you for ...21 Dec 2017 · Uploaded by My Academy: Mechanical Engineering In this article Learn :cantilever beam Bending moment diagram B.M.D. and shear force diagram S.F.D. of a cantilever beam having point load at the end,several point loads,U.D.L. Over Whole Span ,U.D.L. not over the whole span,U.D.L. from support to some distance,U.D.L. Somewhere on the beam,Combination of Point Loads and U.D.L. Chapter-4 Bending Moment and Shear Force Diagram S K Mondal’s Shear force: At a section a distance x from free end consider the forces to the left, then (V x) = - P (for all values of x) negative in sign i.e. the shear force to the left of the x-section are in downward

Shear Force and Bending Moment Diagram of Cantilever beam when point load is applied. From the figure we have the value of load at point A and point B. So let’s draws the shear force diagram with the help of these loading. Bending moment at point A is zero. Bending moment at point B= -2*2 = 4 KN-M. Bending moment at point C= -2*4-4*2 = 12 KN-M. 16:20We will learn how to workout shear force and bending moment for a cantilever beam with point loads, first ...29 Jul 2019 · Uploaded by All About Structural Analysis and Design 24:33in this video i explain step by step procedure for drawing shear force and bending moment diagram.........21 Dec 2017 · Uploaded by GTU MIMP The bending moment and shear force diagrams of the beam are composites of the V and M diagrams of the segments. These diagrams are usually discontinuous, or have discontinuous ... The cantilever beam in Fig.(a) carries a triangular load. The intensity of which varies from zero at the left end to 360 lb/ft at the right end. In addition, a

7:53This video explains how to draw shear force diagram and bending moment diagram with easy steps for a ...1 Oct 2018 · Uploaded by Eurocoded Shear force on cantilever beam is the sum of vertical forces acting on a particular section of a beam. While bending moment is the algebraic sum of moments about the centroidal axis of any selected section of all the loads acting up to the section. Example: Draw shear force and bending moment diagrams of the cantilever beam carrying point loads. 10:17This video shows Shear Force and Bending Moment diagram of a cantilever beam. For more details please ...10 Apr 2020 · Uploaded by Civil Engineering 12:47Subject - Strength of MaterialsVideo Name - SFD and BMD for Cantilever Beam - Problem 1Chapter - Shear ...11 Apr 2016 · Uploaded by Ekeeda

Solved Develop Mathematical Expression And Draw The Shear Force And 1 Answer Transtutors

3.2 - Shear Force & Bending Moment Diagrams What if we sectioned the beam and exposed internal forces and moments. This exposes the internal Normal Force Shear Force Bending Moment ! What if we performed many section at ifferent values Of x, we will be able to plot the internal forces and bending moments, N(x), V(x), M(x) as a function Of position!

Maximum Bending Moment Formula

Shear Force and Bending Moment diagram for cantilever beam. It is a transverse force, one part of the beam exerts on the other part at any cross section. It is equal to the algebraic sum of all the transverse forces (including the reaction) either to the left or to the right of the cross-section.

Civil Engineering Mechanics Cantilever Beam Shear Force And Bending Moment Diagram Practice Problem Facebook

6:02This video shows the shear force and bending moment diagram for a cantilever beam. Cantilever is the type ...29 Dec 2018 · Uploaded by Civil Engineering

Shear And Moment Diagram Wikipedia

Shear Force And Bending Moment Diagram For Cantilever Beam With Udl Mechanical Engineering Concepts And Principles

Shear And Moment Diagrams S B A Invent

A Cantilever Beam Ab Is Subjected To Two Concentrated Load As Shown In Figure Ex 2 Determine A Reactions At Fixed Support A And B Draw The Shear Force And Bending Moment

Cantilever Beams Moments And Deflections

Shear And Bending Moment Diagrams Of Concentrated Applied Loads 28 10 Sideway Output To

Gate Ese Shear Force And Bending Moment Cantilever Beam With Udl On Overall Length On Part Span Offered By Unacademy

Shear Force And Bending Moment Diagram For Cantilever Beam Civilmint

Cantilever Beam Shear Force And Bending Moment Diagram With Triangular Load Youtube

Shear Force And Bending Moment Diagram For Cantilever Beam Civil Snapshot

Sketch The Shear And Bending Moment Diagrams For The Cantilever Beam Shown Given The Following Parameters Omega A L Study Com

Shear Force And Bending Moments In Beams Hareesha

9 Shear Force N Bending Moment

Draw The Shear Force And Bending Moment Diagrams For A Cantilever Beam Ab Carrying A Uniform Load Of Intensity Q Over One Half Of Its Length Study Com

Shear Force And Bending Moment Diagram For Cantilever Beam With Point Load Civil Snapshot

A Cantilever Beam Ab Is Subjected To Uniformly Distributed Load As Shown In Figure Ex 3 Determine A Reactions At Supports A And B Draw The Shear Force And Bending Moment Diagrams

Stress Analysis Of The Cantilever Beam A Cross Sections Of The Beam Download Scientific Diagram

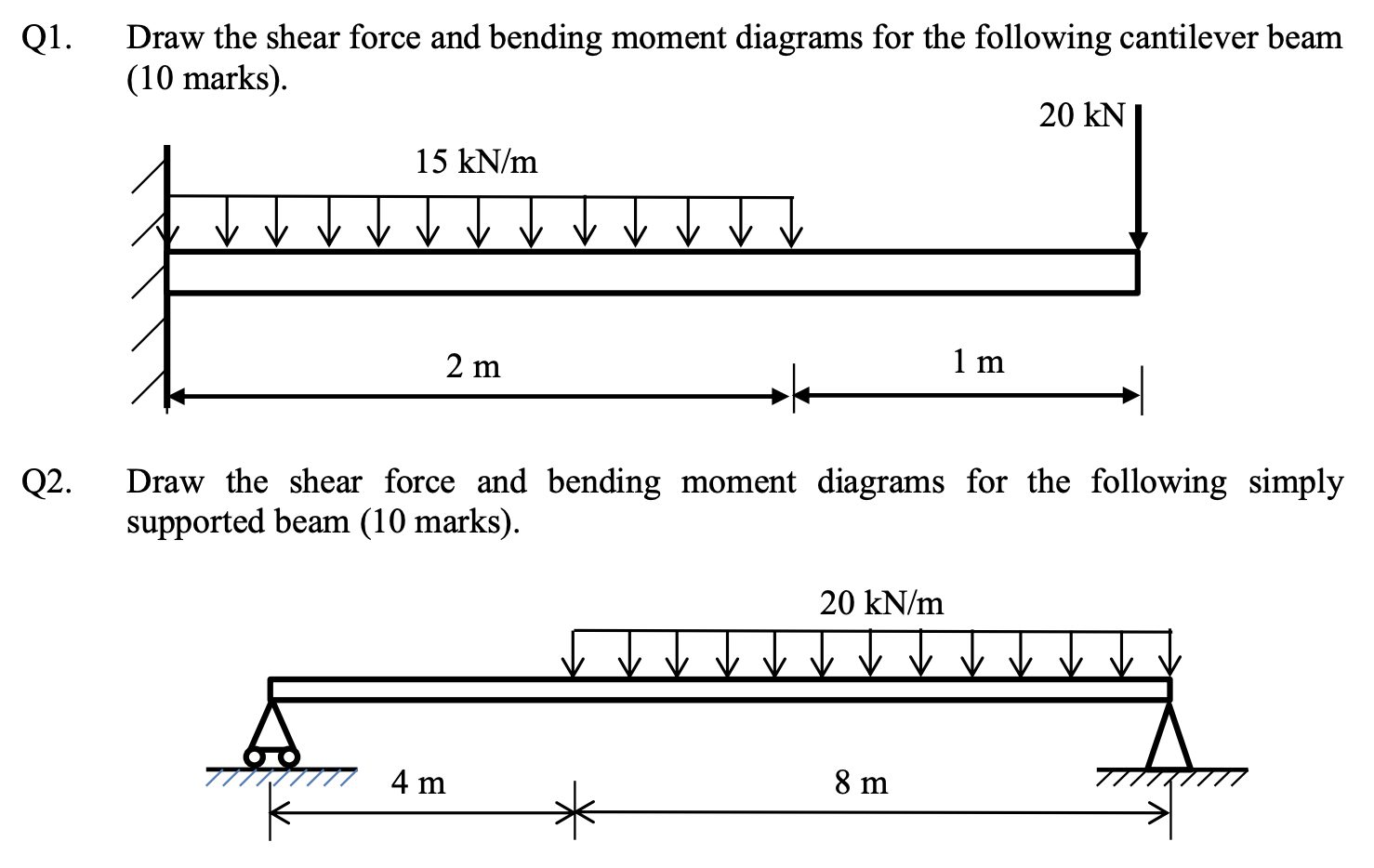

Solved Q1 Draw The Shear Force And Bending Moment Diagrams Chegg Com
