Hydraulic systems, like the ones found in Lippert slide rooms, rely on limited space and the push of a button to extend and retract a full-sized bonus room for your rig. While the hydraulic mechanisms of a Lippert system make the slide process much easier, there might be times when your slideroom doesn’t want to cooperate. Block Diagram of Power to Hydraulic Pump. The Lippert Hydraulic Slideout and HLG System is an electric/hydraulic system. A . 12V DC electric motor drives a hydraulic pump that moves fluid through a.Ford Sport Trac with Multi Coil System , Spark Plug Wire Set by Beck Arnley®. Designed utilizing the latest technology, this product by Beck Arnley ...

Starting At $248.95. Aluminum Hydraulic Actuator. Choose Options. Add to Wish List. $1,297.95. Hydraulic Power Unit With 2QT Pump Reservoir Kit. Add to Cart. Add to Wish List. $216.95.

Lippert hydraulic pump diagram

Mechanical portions of the Level-Up® 5th Wheel Hydraulic Leveling System are replaceable. Contact Lippert. Components, Inc. to obtain replacement parts. TI - 038: Testing Procedure for Hydraulic Pump and Dual Polarity Solenoid. TI - 040: Hydraulic Slide-out Pump Circuit Breaker Wiring Information. TI - 042: Hydraulic Full Wall Slide-Out System Addendum. TI - 048: Manual Override For Hydraulic Leveling And Slide-Outs. TI - 049: Through Frame Comparative (2.5 x 2.5 vs. 2 x 2) Lippert Hydraulic Slide-Out Pumps and Parts: Sort By: Page of 1 : Lippert 141111 Hydraulic Power Unit With 2QT Pump Reservoir Kit Model 643150 Ships in 5-7 Business Days Price: $1,255.16 . Lippert 136046 Polarity Reversing Solenoid For Hydraulic Slide-Outs In Stock Price: $130.64 . 30 in stock! Lippert 118246 Dual ...

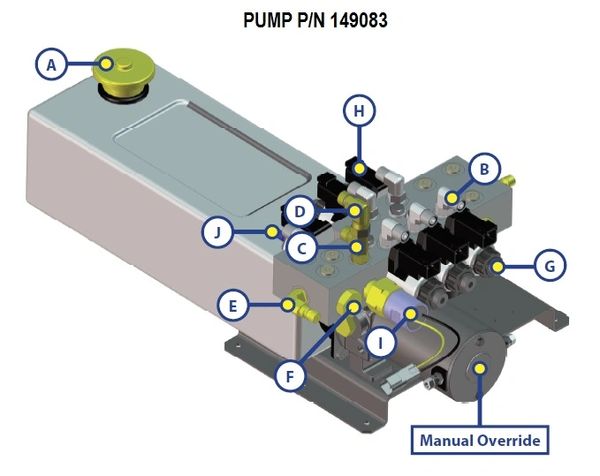

Lippert hydraulic pump diagram. A 12V DC electric motor drives a hydraulic pump that moves ... The use of the Lippert Components, Inc. Hydraulic Leveling System to support the coach for ... The Lippert Hydraulic Through Frame Slide-out System is a rack and pinion guide system utilizing a hydraulic cylinder to move the room assembly. The power unit drives the cylinder rod in a forward and backward motion to move the slide room in and out. The Lippert Hydraulic Slide-out System is designed to operate as a negative ground system. I have attached some diagrams of the wiring for the Lippert Replacement Hydraulic Power Unit with 2-Quart Pump Reservoir Kit for RV Slide-Out IRC System # LC141111.The first one is from my contact at Lippert and some of the extra wiring is from their Level Up controller. Each jack is powered from a central 12VDC motor/pump assembly, which also includes the hydraulic oil reservoir tank, control valve manifold, and solenoid valves. The Lippert Electronic/Hydraulic Leveling and Slideout System is controlled electronically from the driver’s seat of the coach. The control panel is mounted in the dash.

Master Owner's Manual - Doors. Master Owner's Manual - Electronics. Master Owner's Manual - Furniture. Master Owner's Manual - Leveling and Stabilization. Master Owner's Manual - Slide-outs. Master Owner's Manual - Sewer and Fresh Water. Master Owner's Manual - Steps. Master Owner's Manual - Storage and Convenience. Master Owner's Manual - Towing. The Lippert Electronic Leveling and Slideout System is an electric/hydraulic system. A 12V DC electric motor drives a hydraulic pump that moves fluid. The Lippert Electronic Leveling and Slideout System is an electric/hydraulic system. A 12V DC electric motor drives a hydraulic pump that moves fluid through a system of hoses, fittings and jacks to level and stabilize the coach. The Lippert Electronic Leveling and Slideout System is totally integrated into the chassis of the coach at the ... Lippert Hydraulic Slide-Out Pumps and Parts: Sort By: Page of 1 : Lippert 141111 Hydraulic Power Unit With 2QT Pump Reservoir Kit Model 643150 Ships in 5-7 Business Days Price: $1,255.16 . Lippert 136046 Polarity Reversing Solenoid For Hydraulic Slide-Outs In Stock Price: $130.64 . 30 in stock! Lippert 118246 Dual ...

TI - 038: Testing Procedure for Hydraulic Pump and Dual Polarity Solenoid. TI - 040: Hydraulic Slide-out Pump Circuit Breaker Wiring Information. TI - 042: Hydraulic Full Wall Slide-Out System Addendum. TI - 048: Manual Override For Hydraulic Leveling And Slide-Outs. TI - 049: Through Frame Comparative (2.5 x 2.5 vs. 2 x 2) Mechanical portions of the Level-Up® 5th Wheel Hydraulic Leveling System are replaceable. Contact Lippert. Components, Inc. to obtain replacement parts.
