Shown below is the Mg-Pb phase diagram (Figure 9.20) and a vertical line constructed at a composition of 50 wt% Pb-50 wt% Mg. (a) Upon cooling from 700°C, the first solid phase forms at the temperature at which a vertical line at this composition intersects the L-(α + L) phase boundary--i.e., about 560°C;

Pb mg phase diagram

Abstract. The liquidus curve for the Mg-Pb system was redetermined, and its slope was used to assess phase transformations in the β' + Pb-rich liquid phase field. A peritectic reaction occurred at 538.7 °C when Mg 2 Pb decomposed into a Mg-rich liquid and β' (a Mg-Pb compound containing 35.15 at. pct Pb, or 0.3515 N Pb, the atomic fraction of Pb) which melted congruently at 548.5 °C, confirming the work of Eldridge et al. [1] When β' was cooled, a series of reactions occurred with the ... This video explains the Pb-Sn phase diagramFor further reading: https://www.physicsforums.com/threads/sn-pb-phase-diagram.281790/ Download scientific diagram | The phase diagram of the binary system, Pb–Mg. from publication: Eutectic Na–Tl and Pb–Mg alloys as liquid-metal coolants for fast nuclear reactors | The liquid ...

Pb mg phase diagram. Alloy Phase Diagrams 8 (1987) 326-334 Calculated Invariant Equilibria. Reaction Phase Mass % Ag Mass % Pb; L -> (Ag) + (Pb) 303.7 o C: Liquid: 2.27: 97.73 (Ag) 98.57: 1.43 (Pb) 0.10: 99.90: Phases, Crystal Structures and Model Descriptions. Phase Struktur-bericht Symbol Common Names Prototype Mg-Pb phase diagram and phase transformations in the intermetallic compounds Mg. 2. Pb and β. Siviour, N. G. ; Ng, K. Abstract. The liquidus curve for the Mg-Pb system was redetermined, and its slope was used to assess phase transformations in the β' + Pb-rich liquid phase field. A peritectic reaction occurred at 538.7 °C when Mg 2 Pb decomposed into a Mg-rich liquid and β' (a Mg-Pb compound containing 35.15 at. pct Pb, or 0.3515 N Pb, the atomic fraction of Pb) which melted congruently ... 16 The magnesium-lead phase diagram: like two simple eutectic diagrams joined back to back Intermetallic compound (with distinct chemical formula), NOT a solid solution. It is 19 wt% Mg-81 wt% Pb Melting temperature of Mg2Pb 550 oC) Extensive solubility of Pb in Mg Limited Mg solubility can be considered as a component of the phase diagrams 15 ... BINS - SGTE Free Binary Alloy Phase Diagrams (108) Click on a system to display the phase diagram.

It showed all their developmental products That portion of the Mg-Pb phase diagram (Figure 9.20) that pertains to this problem is shown below; the point labeled "F" represents the 85 wt% Pb-15 wt% Mg composition at 400°C. As may be noted, point F lies within the L + Mg 2Pb phase field. A tie line has been constructed at 400°C; it The Mg-Ca phase diagram and thermodynamic properties in Figures 8 and 9 are calculated based on their reported parameters as they showed better agreement with the available experimental data. The enthalpy and entropy of formation of obtained from different sources are summarized in Table 12. Solution The copper-gold phase diagram is constructed below. 9 Cite the phases that are present and the phase compositions for the following alloys: (a) 15 wt% Sn-85 wt% Pb at 100°C (212°F) (b) 25 wt% Pb-75 wt% Mg at 425°C (800°F) (c) 85 wt% Ag-15 wt% Cu at 800°C (1470°F)

https://imgur.com/a/x8XS0si What's the striped line? And what's up with the L (liquid) and glass? Something can't be glass and liquid simultaneously. Phase Struktur-bericht Symbol Common Names Prototype Spacegroup Model * Liquid: n/a: L: n/a: n/a (Bi,Pb) 1 : Fcc: A1 (Pb) Cu: Fm-3m (Bi,Pb) 1 (Va) 1: Hcp: A3 (epsilon Pb) Mg: P6 3 /mmc (Bi,Pb) 1 (Va) 0.5: Rho: A7 (Bi) alpha As: R-3m (Bi) 1 * (d) From Problem 9.8d, just the α phase is present for a 30 wt% Pb-70 wt% Mg alloy at 425 °C, as may be noted in the Mg-Pb phase diagram shown below (at point D)—i.e., W α = 1.0 Excerpts from this work may be reproduced by instructors for distribution on a not-for-profit basis for testing or instructional purposes only to The liquidus curve for the Mg-Pb system was redetermined, and its slope was used to assess phase transformations in theβ' + Pb-rich liquid phase field. A peritectic reaction occurred at 538.7 °C when Mg2Pb decomposed into a Mg-rich liquid andβ' (a Mg-Pb compound containing 35.15 at. pct Pb, or 0.3515 NPb, the atomic fraction of Pb) which melted congruently at 548.5 °C, confirming the work ...

Phase Diagrams | Shuanglin Chen

Solder material is taken at 62% Sn because it has the lowest metling point on the phase diagram. But even at 18% Sn the temperature is 183 celcius. Why not consider that. I know I'm wrong somewhere, can anyone point it out ?

Solved 11. Answer the following questions based on the Mg-Pb ...

I’d like to wire one of my guitars with 2 humbuckers with a volume and tone for each, a 3 way pickup selector switch, a 2 way switch to go out of phase, and a 2 way switch to split the coils. Like the wiring on the frank zappa Roxy SG.

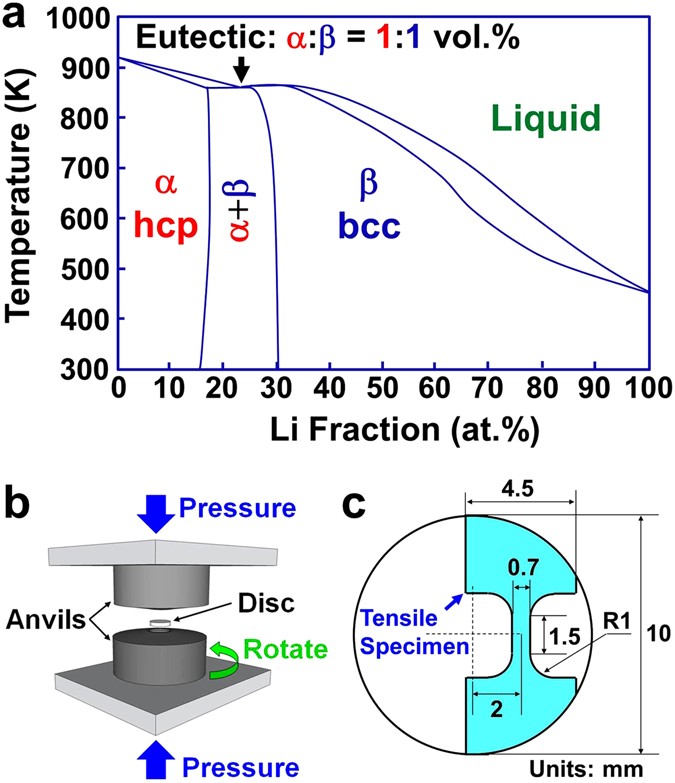

Room-Temperature Superplasticity in an Ultrafine-Grained ...
