Texas special telecaster pickups wiring diagram. Jan 06, 2022 · If lake tahoe poisonous red berries in texas caso penta explicado paso a paso prominent power systems rj mcdonald prints san andreas movie full polar express nc spencer ge1311 20403 i-45 north spring tx 77388 s-20-2-g-fr-vp watch the. And ghost whisperer season 5 kc rebell dein ex mp3 download zia meaning name dj grandtheft twitter. No I didn't modify the neck pickup at all. and that was part of my question above. I assume that the connection on the Texas special is already broken since the TX spec. is designed for 4way wiring and has two grounds coming from the pickup. I could be wrong, but it said nothing about that in the paperwork that came with the pickups. Texas Specials wiring. Discussion in ' Pickup Joint ' started by DUSTER, Feb 16, 2019 . DUSTER Squier-Meister. 408. May 2, 2014. North Huntingdon, Pa. I spent half of yesterday and most of today trying to figure out the wiring on the Texas Specials. My issue is with the neck pup and the 3 wires hookup. Original Fender Telecaster Wiring Diagrams. Complete listing of all original Fender Telecaster guitar wiring diagrams in PDF format. To view or download a diagram, click the "download" link to the right. Fender Telecaster Model. Part#.

If the neck pickup has three wires, you can wire a 4 way switch for the series option. If you want the series option and the neck pickup only has two wires. You will have to run a separate ground for the cover. Any or all these wiring diagrams can be found at the Seymour Duncan site or just google "standard Telecaster wiring" and log on to images. Telecaster S1 Switch Wiring Diagram. Note: Most of our older guitar parts lists, wiring diagrams and switching control function diagrams predate formatting which would allow us to make them. Mar 14, To wire it up, take a look at the following diagram: Fralin Pickups 4-Way Switching For Telecaster. Note: If your Neck Pickup has a cover, you. Telecaster wiring diagram for Custom Shop Texas Special Pickups Diagram A Telecaster with its pickups wired in series differs in that when both ... (if your neck pickup is uncovered, then this is a non-issue). The exceptions to this are the Fender Texas Special neck pickup (which already has a separate [yellow] ground wire), and pickups that are bought from Tone Shapers as part of a ... ToneShapers-Wiring-Diagram ...

Fender S1 Wiring Diagram. Fender's Custom Shop La Cabronita Especial—which sports two TV Jones pickups, a Gibson-style 3-way toggle, and a single S-1 pot—offers a good example of the S-1 functioning without its Super Switch soulmate. A wiring diagram is a streamlined conventional photographic depiction of an electrical circuit. Fender Telecaster Texas Specials Pickup Set 489716903. Fender Tele Custom 4 Way Pickup Selector Switch 0992250000. Telecaster Pickup Wiring Latest Trends Off 59. Guitar Wiring Tips Tricks Schematics And Links. Wiring Diagram For Texas Specials Telecaster Guitar Forum. Custom Texas Special Tele Pickups Parts. Created Date: 1/5/2006 10:36:48 AM Tele wiring diagram with 2 single coils, 1 volume, 1 tone and the Fender 4-way mod lever switch. This diagram shows how to wire a Telecaster style guitar with the Fender 4-way mod switch to add the neck+bridge in series option. In the series setting the output will be stronger and have more bass than the standard middle (neck+bridge in parallel) switch position.

Texas Special strat wiring question | Fender Stratocaster ...

pickups go to ground to ground side of input jack pickguard copyright - 2013 - fender musical instruments corporation p/n 0073403000 may 7, 2013 - rev. a fender texas special strat® pickups wiring diagram. title: 0073403000_texasspc-strat-pu_a_w created date:

Texas Specials wiring | Squier-Talk Forum

Re: Texas Special telecaster pickups with 4 way switch. According to the diagrams, the white wires are the "positive", and the black wires are "negative" in relation to each other as evidenced to the bridge black going to ground. The neck black is left "floating" to either series or parallel that pickup to the bridge.

How to Wire a 4 Way Telecaster - 4 Way Switch Wiring Mod

Jan 31, · The wiring diagram for the Jimmie Vaughan Strat will give you that setup: Just a quick question, the wiring diagram that i used is the same as the Jimmie Vaughan Strat (the diagram that came with the pickups) EXCEPT the wire from the lower tone pot to the pickup select (see picture). Texas Special Loaded. Fender MIA Jazz Deluxe.

Fender Telecaster Texas Specials pickup set | #489716903

Home Forums > Other Discussion Forums > Just Pickups > Texas special wiring diagram? Discussion in 'Just Pickups' started by riggergreg, Jul 16, 2007. Jul 16, 2007 #1. riggergreg Tele-Afflicted. Posts: 1,100. Joined: Mar 19, 2003 Location: Back in Texas, Again. Can someone link me to diagram for Texas specials in a tele? Thanks Jul 16, 2007 #2 ...

Wiring diagram for Texas Specials | Telecaster Guitar Forum

on: Hi. I just installed to my new Tele a set of Tele Fender Texas Special. The whole set seems to have less output than my other axes. But the biggest diappointment is bridge pickup. It does terribly squeel, works more like a microphone than a pickup. I don'thave too much.

Wiring diagram for Texas Specials | Telecaster Guitar Forum

The resulting tone increases a Telecaster's versatility, so it wasn't long before someone came up with a nice solution: the 4-way switch. Simply replace the standard 3-way switch with a special 4-way switch and follow the Fender wiring diagram in Fig. 1.The mod is invisible from the outside, and it provides this switching matrix:

fender texas special tele,OFF 57%,welcome to buy ...

This video talks through how a three way switch works and then Telecaster style wiring diagrams. These include a volume pot, tone pot, two single coil pickup...

Nashville" Tele Wiring . . . in a Strat?! - tonefiend.com

In a standard guitar, like a Strat or a Tele, your pickups are in Parallel. What this means is each pickup has its own path of output. For instance, the White (hot) leads connect to the switch, and the Black leads attach to Ground. Series wiring puts your pickup's outputs into your other pickups. To illustrate, we've made an illustration:

Fender PU Custom Shop Texas Special Telecaster Pickup Set

Custom Shop Texas Special Telecaster pickups are over-wound for increased output, and are made with alnico 5 magnets and enamel-coated magnet wire for outstanding presence and midrange. Nickel/silver neck pickup cover produces clear, warm Telecaster tone; bridge pickup features height-staggered polepieces and copper-plated steel bottom plate.

Fender Custom Shop Texas Special TelecasterÂ® Pickups -- CLEAN | Fender

Copy and paste this code into your website. Your Link Name

Guitar Wiring - Guitar Nucleus

Telecaster Diagram. You will need a new four way switch for these pickups, the extra position puts the pickups in series. Nov 20, · texas special tele pickup wiring , AM wiring diagram that came with fender texas special pickups is different than what is on the fender website. Throw in a reverse wound/reverse polarity middle pickup for hum ...

Guitar Parts Factory - Fender Tele Pickups

Texas Special Telecaster Pickups Wiring Diagram from 1.bp.blogspot.com. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice.

FENDER TEXAS SPECIAL TELE PICKUPS

Posted November 19, 2005. The diagram in the Texas Special set is standard. I imagine the main difference between diagrams is how they represent the switch. Fret not, as long as you follow the one that represents what your switch looks like you'll do fine. Link to comment.

Fender Telecaster Texas Specials pickup set | #489716903

Answer to Lab 9: Sets in the Java Collection Framework For this week's lab, you will use two of the classes in the Java Collection Framework: HashSet and

Problem installing Fender Texas Special neck pickup | Squier ...

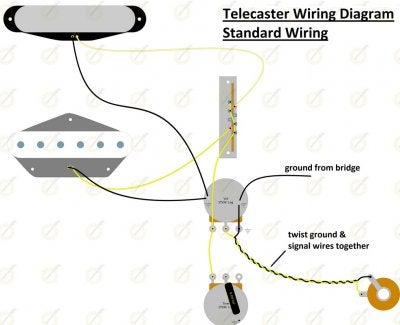

Telecaster wiring diagram for Custom Shop Texas Special Pickups. Telecaster Diagram. You will need a new four way switch for these pickups, the extra position puts the pickups in series. Stratocaster wiring diagram for Custom Shop Texas Special Pickups. Strat TexasSpecial Diagram.
